Description

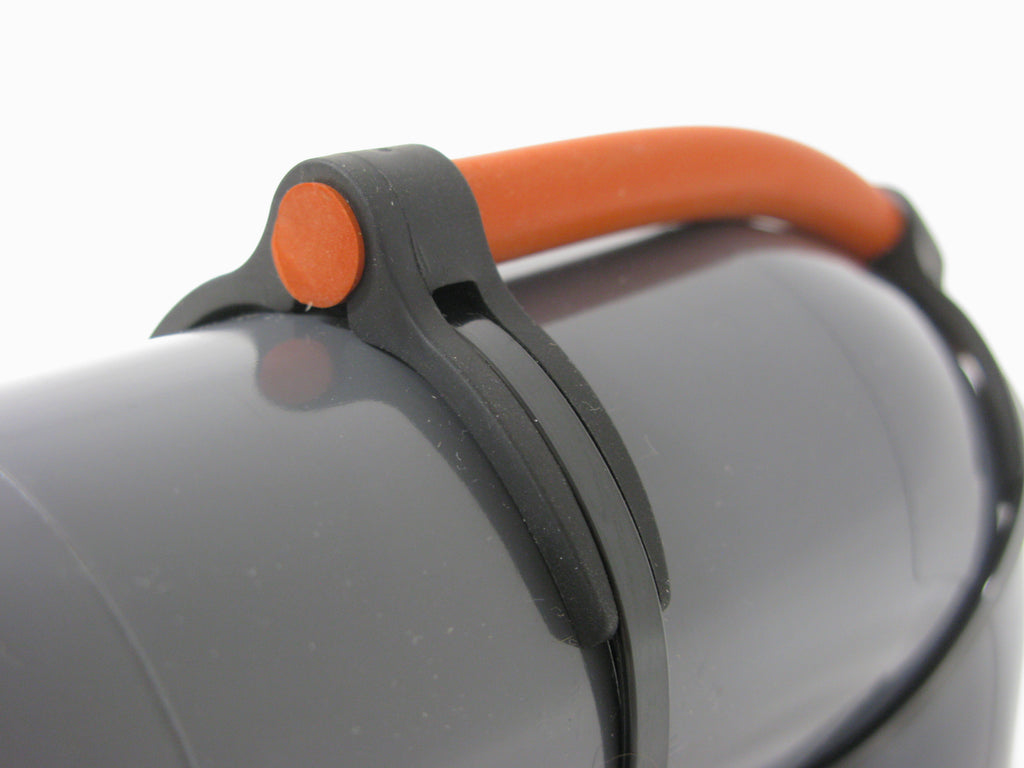

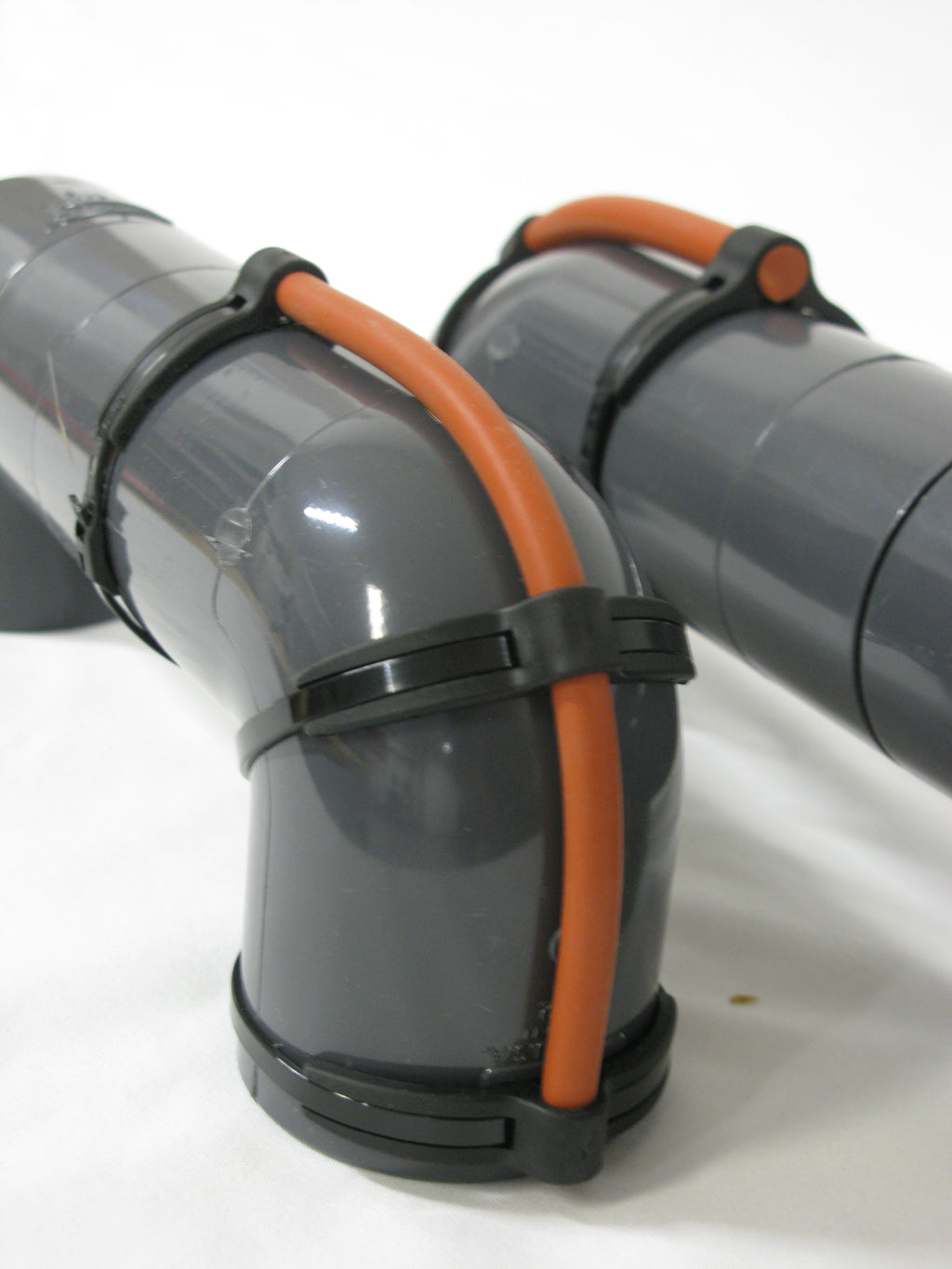

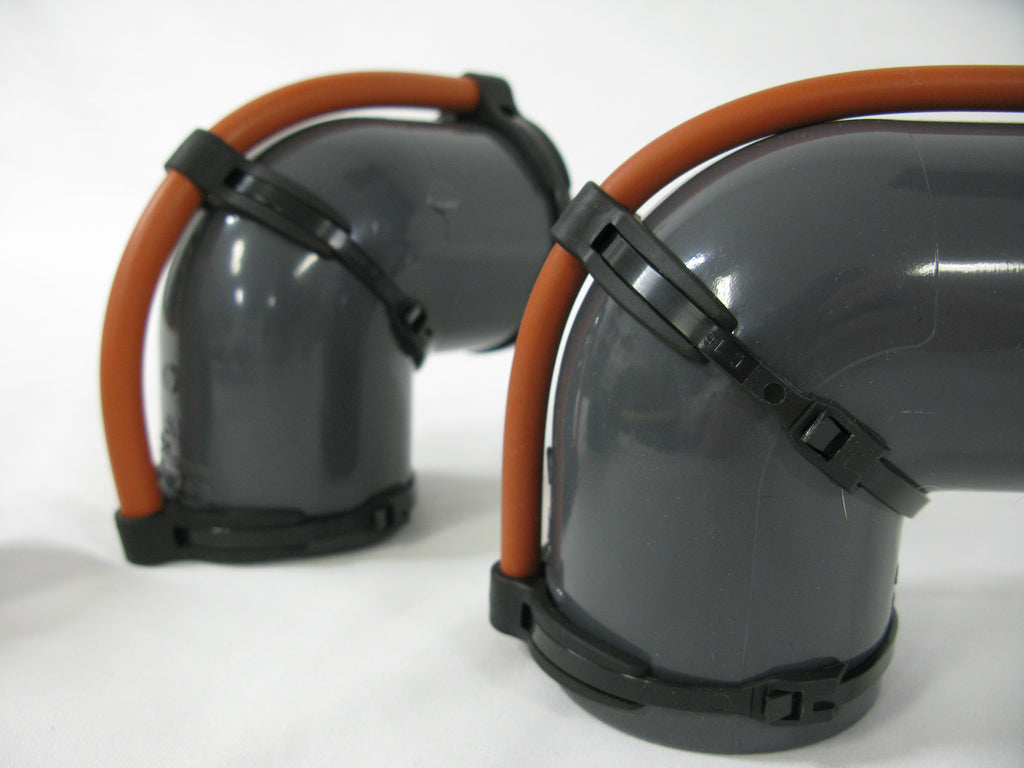

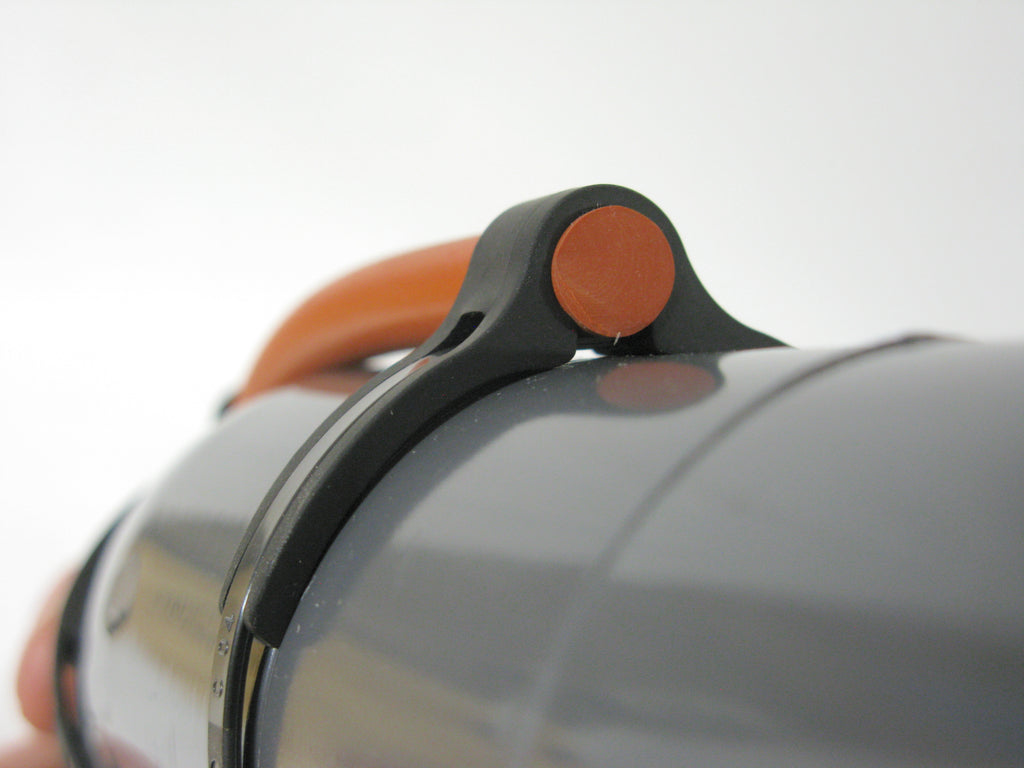

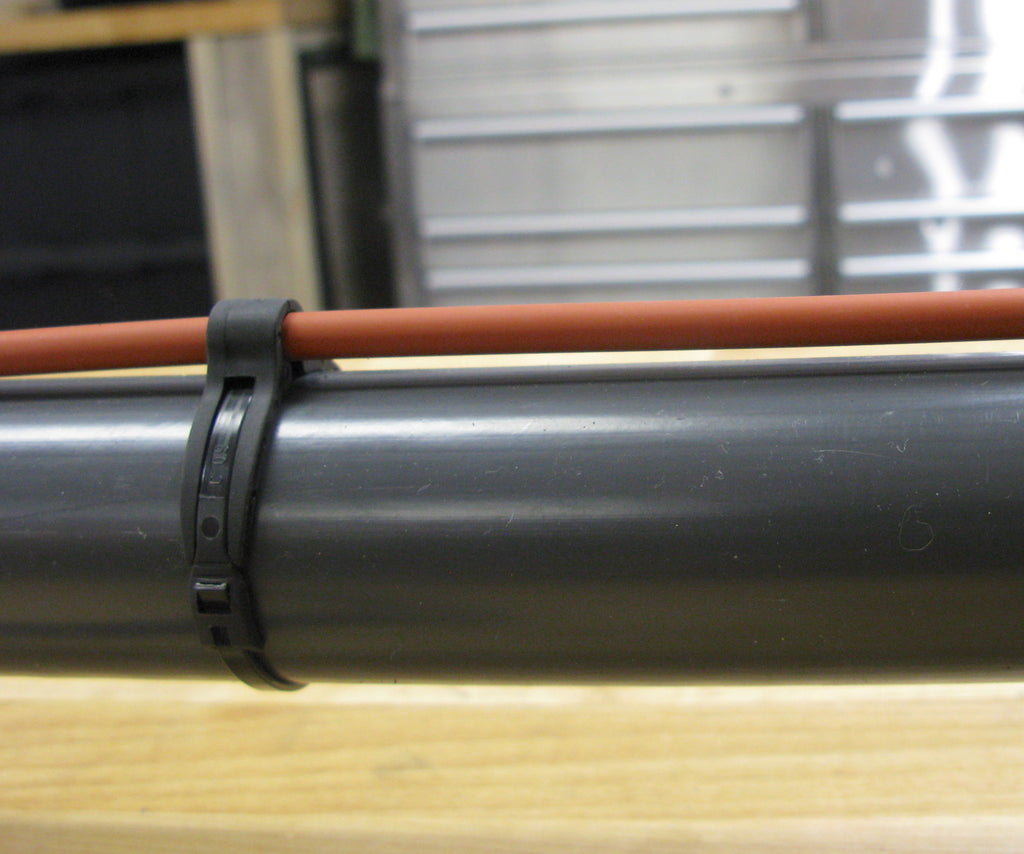

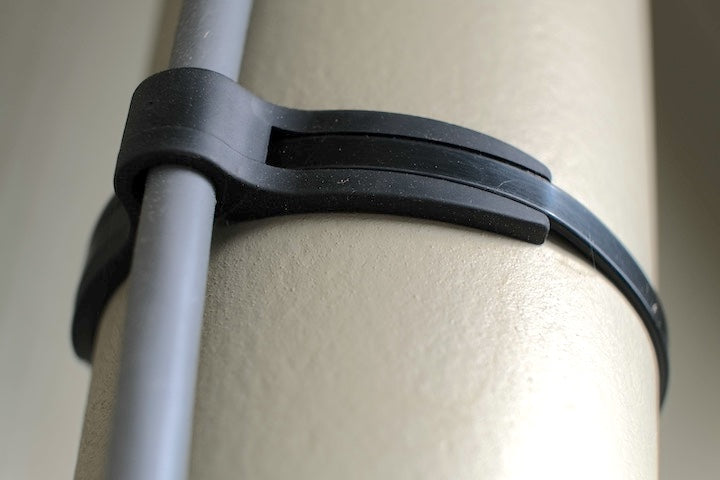

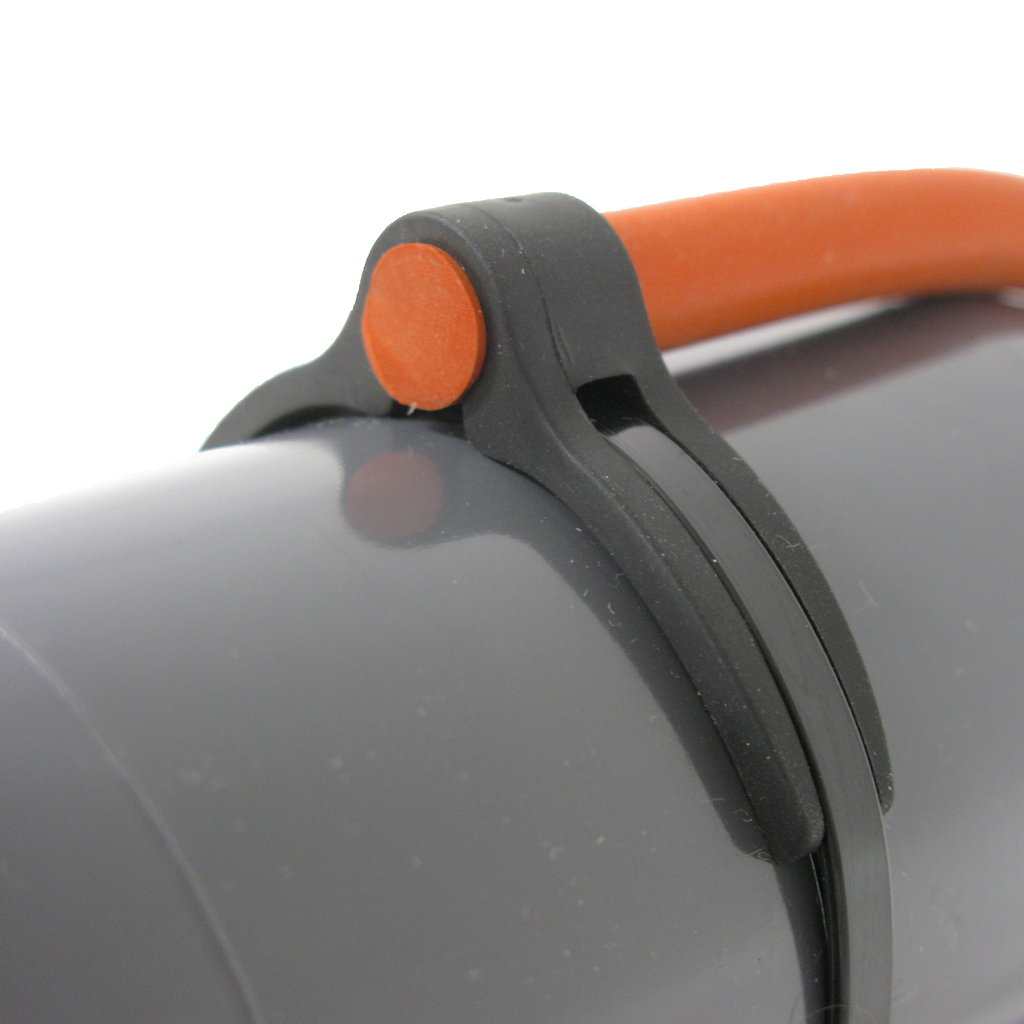

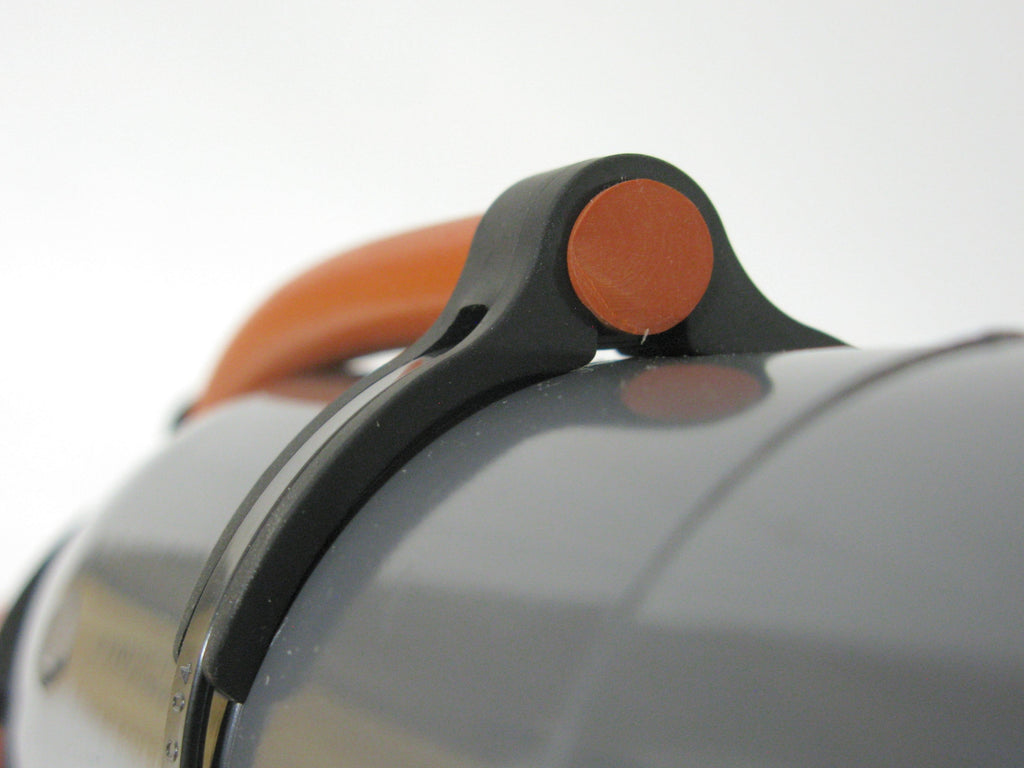

The patented Flexroute® TPV rubber cable clamp secures and protects cable, hose, and tubing without crushing, kinking, or damaging the line. Made from durable Santoprene™ TPV, the clamp cushions routed lines while maintaining a secure grip.
Unlike cable ties or hard clamps that can pinch or deform hose or tubing, Flexroute® cable clamps distribute pressure evenly to prevent compression, abrasion, and collapse. The flexible TPV elastomer design also absorbs vibration and shock, protecting routed lines and critical system components in mobile, high-vibration and harsh operating environments.
Built for durability, Flexroute® TPV Rubber Clamps resist UV exposure, ozone, chemicals, and harsh weather, making it ideal for both indoor and outdoor use. Installation is quick and simple using any standard 50lb cable tie, allowing fast routing and easy repositioning.
For product use and safety information visit our Flexroute® Product Use page. Please read prior to installation.
Key Features :
- Secure grip without crushing or deformation
- Cushions and protects hose, tubing, non-conductive cable and more
- Prevents kinking, pinching, and collapse
- Flexible Santoprene™ TPV absorbs vibration and shock
- Resistant to UV, ozone, and environmental exposure
- Accommodates a range of cable and hose diameters
- Fast installation with any Standard 50lb Nylon66 cable ties
- Min Operating Temp: -40F (-40 C) when using included Cobra® low profile cable ties
- Max Operating Temp: 185F (85 C) when using included Cobra® low profile cable ties
For Use With:
- Non-conductive insulated cable
- Wire bundles
- Hose
- Tubing
- Pneumatic or hydraulic lines
- Conduit
CAUTION:
- Use with insulated cable only.
- Install in accordance with all applicable codes and regulations.
- Not intended to support weight-bearing loads of any kind.
- Inspect regularly for signs of wear.
- Replace if signs of wear found.
- WARNING: Keep out of reach of children.
- WARNING: Cancer and Reproductive Harm - www.F65Warnings.ca.gov.
For product use and safety information visit our Flexroute® Product Use page. Please read prior to installation.
Not Intended For:
-
Damaged or compromised cables
-
Securing or suspending any type of load or weight
-
Structural support applications
-
Temperatures below -40°F (-40°C) or above 185°F (85°C)
- Applications where failure of cable clamp or cable tie could result in injury or death

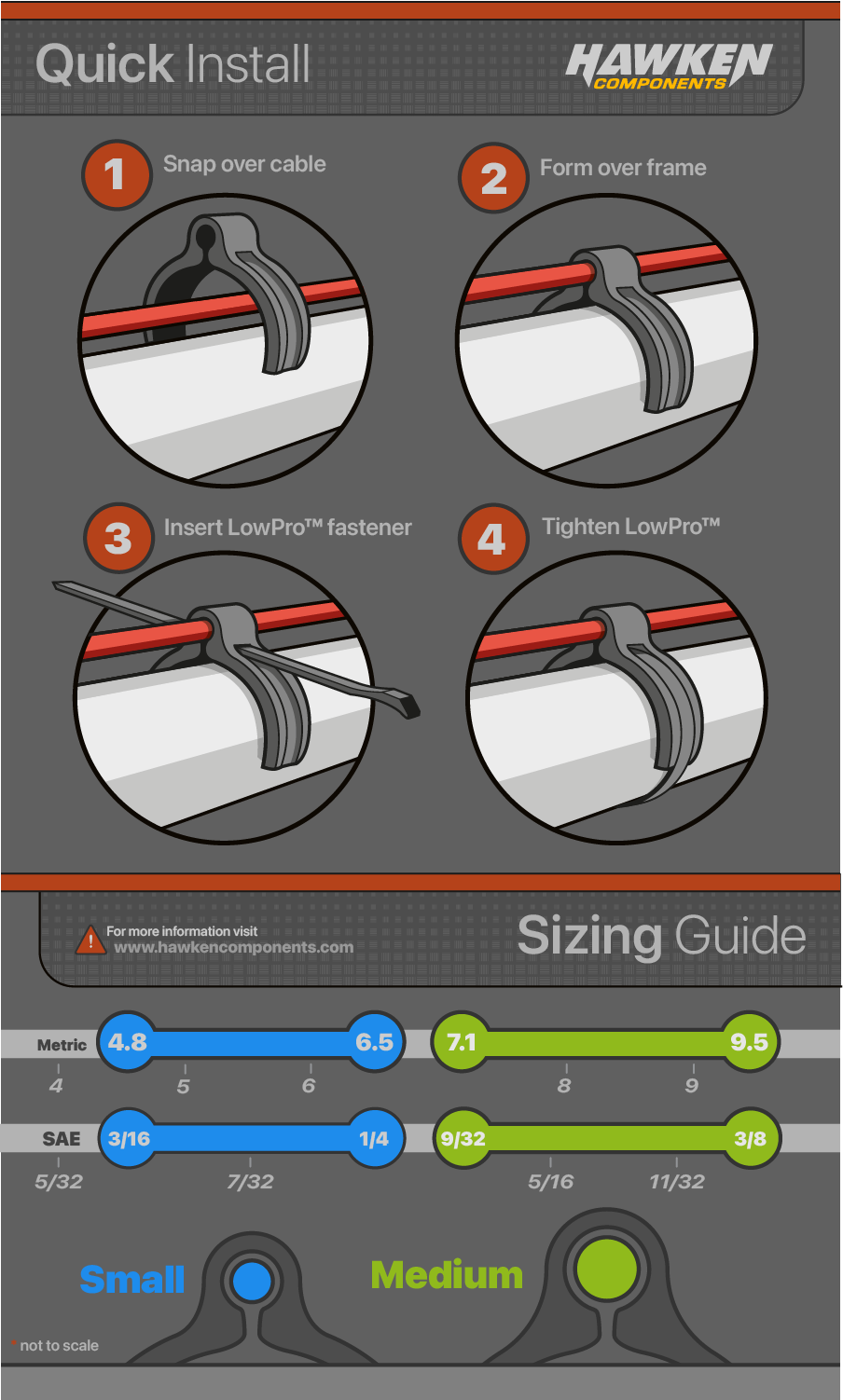

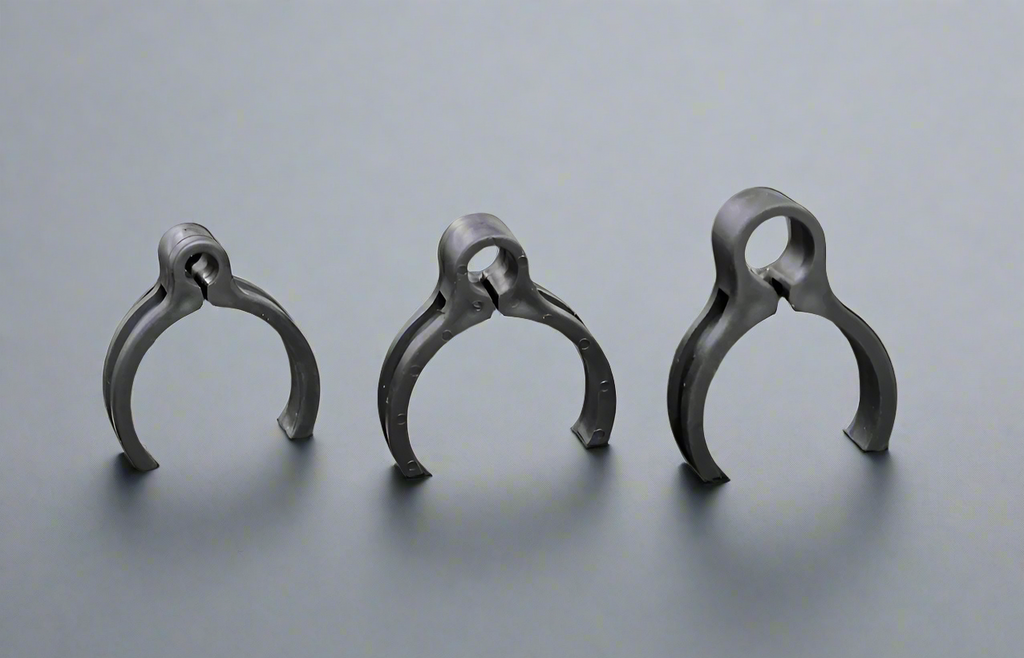

Available sizes (cable diameter):
- Small | Metric (4.8mm-6.5mm) Standard (3/16"-1/4")
- Medium | Metric (7.1mm-9.5mm) Standard (9/32"-3/8")
- Large | Metric (9.5mm-12.7mm) Standard (3/8"-1/2")

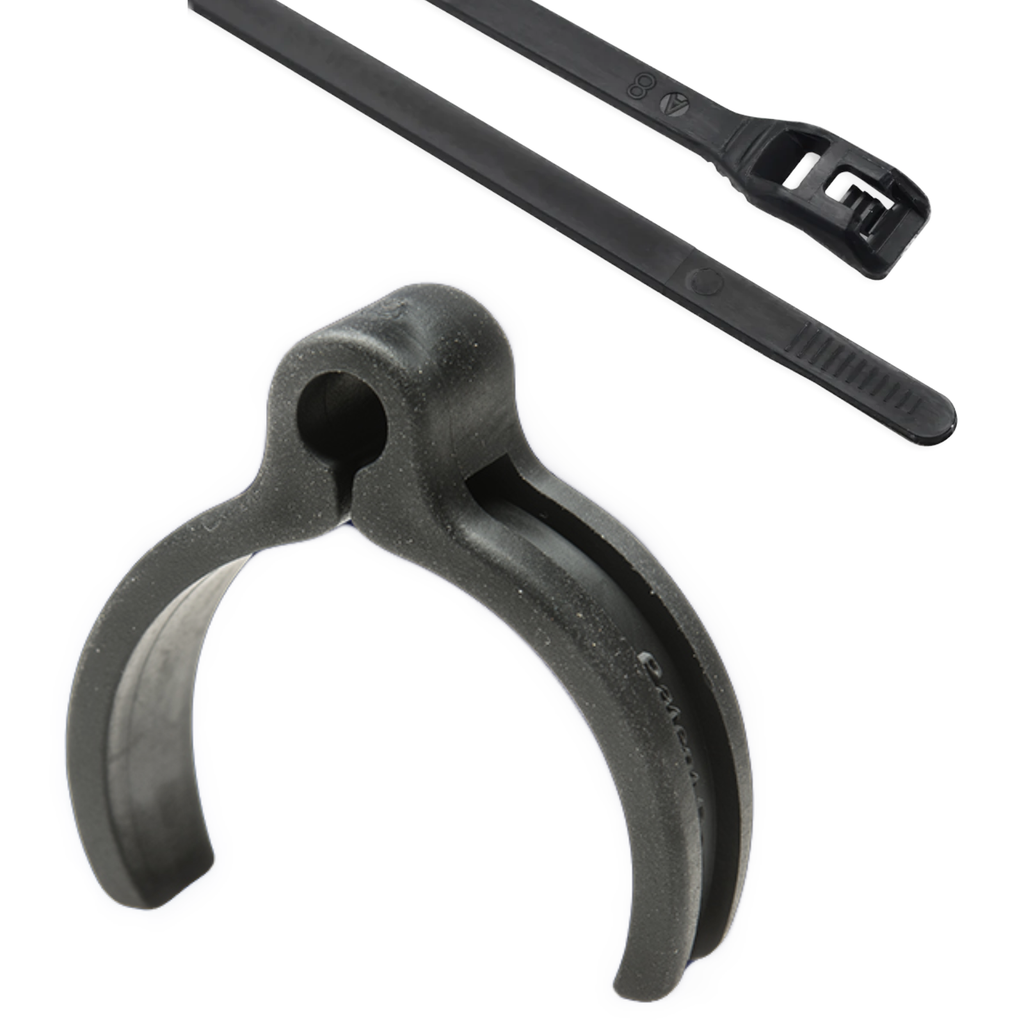

All Flexroute® Cable Clamp packs include 14" Cobra® Low Profile cable ties - Nylon 6/6.
14" standard Cobra® low profile cable tie
- UL Rated: Indoor/Outdoor Use
- Strap ID: Standard
- Material: Nylon 6/6 UV/Black (US Sourced)
- Length: 14”/370mm
- Strap Width: .18”/4.6mm
- Tensile Rating: 55lb/244n
- Min Operating Temp: -40F (-40 C)
- Max Operating Temp: 185F (85 C)
- Min Installation Temp: 32F (0C)
- Min Bundle Diameter: .4”/10mm
- Max Bundle Diameter: 4.0”/103mm
- MS Tool: MS90387-1
- Tool Tension: Standard 5 to 8
- Country of Origin: China
- WARNING: Keep out of reach of children.
- WARNING: Cancer and Reproductive Harm - www.F65Warnings.ca.gov.
Customer Reviews
Helped organize the cables and harnesses on my race car ,
The concept is super good, and they do a good job not scratching, but on show chrome material they dont get tight enough to not spin or move.
Hey Austin,
Thank you for your review. The low profile cable ties can be more difficult to tension by hand than traditional cable ties especially on low friction surfaces like polished chrome. We recommend using a cable tie tension tool set to Standard 5 to 8, it will get a good solid grip with more tension. If no tension tool is available, try using a traditional standard 50lb cable tie, it is easier to tension by hand.
Another trick is to leave the clamp in sunlight for a few minutes so the rubber gets a bit softer during install.
Thanks again for your feedback!
Hawken Components

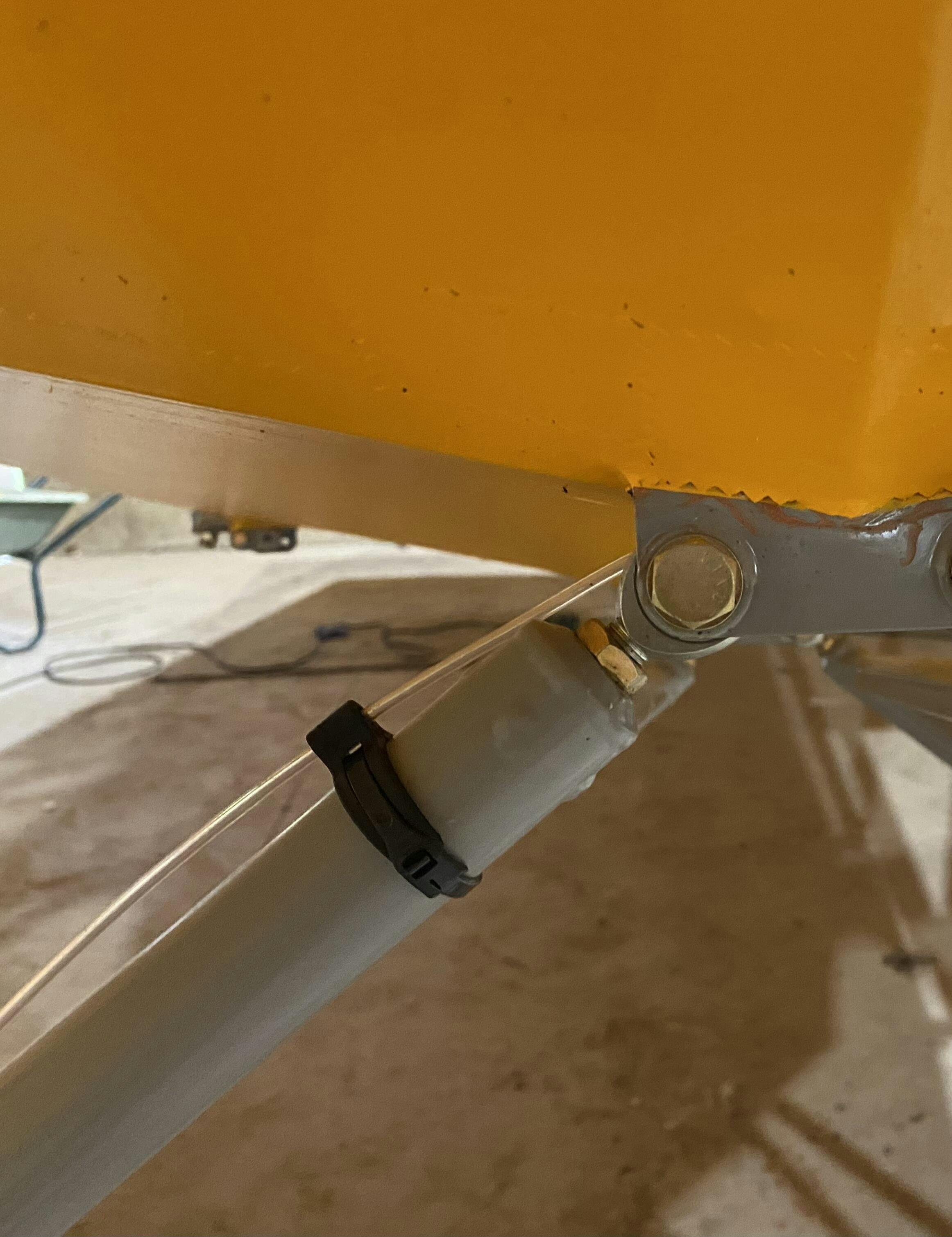

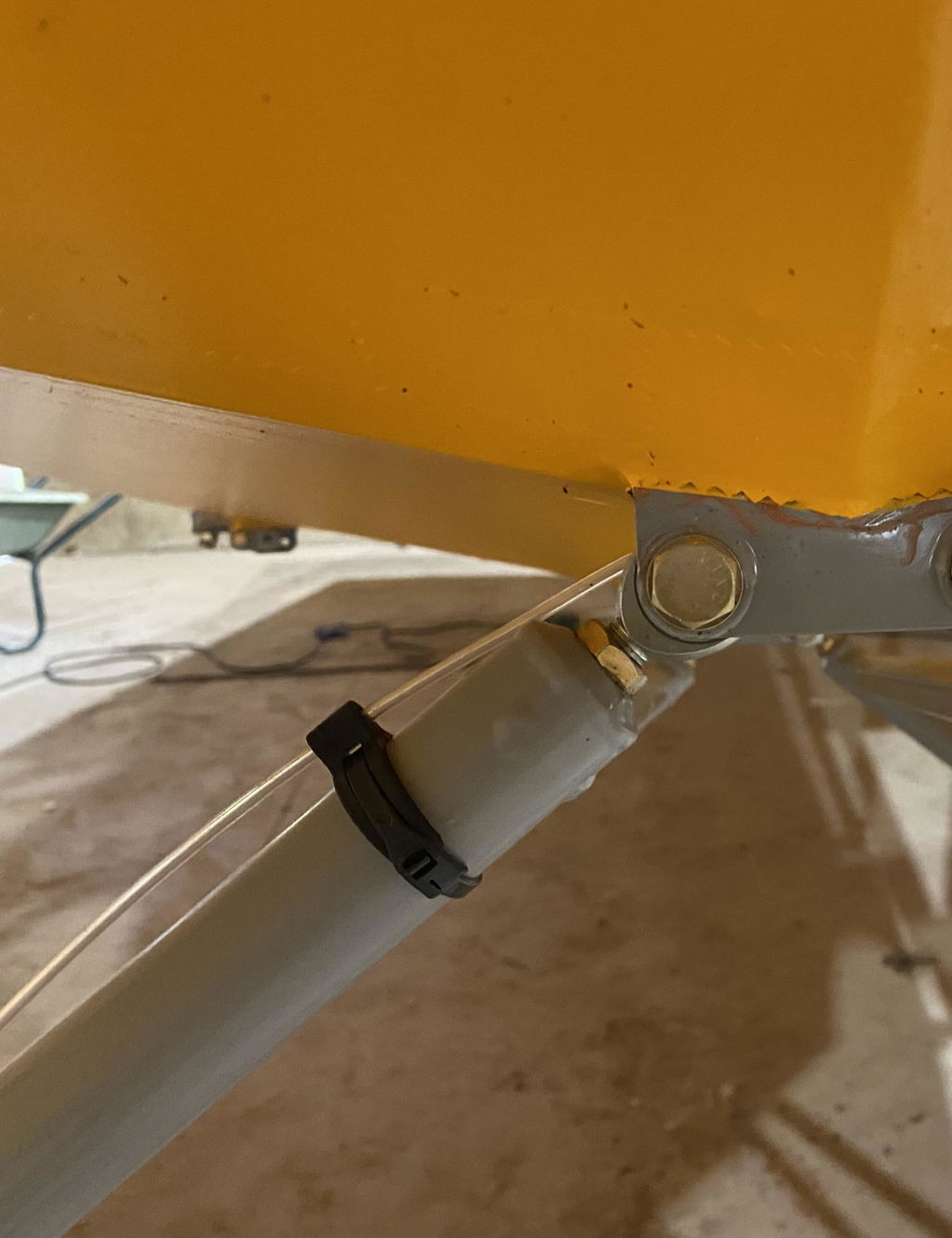

The Flexroute cable clamps worked perfectly to secure the brake lines on my airplane without the concern of overtightening and crimping/damaging the brake lines like other regular plastic ties.
They are very easy to install. They look great and they do the what they are intended to do.

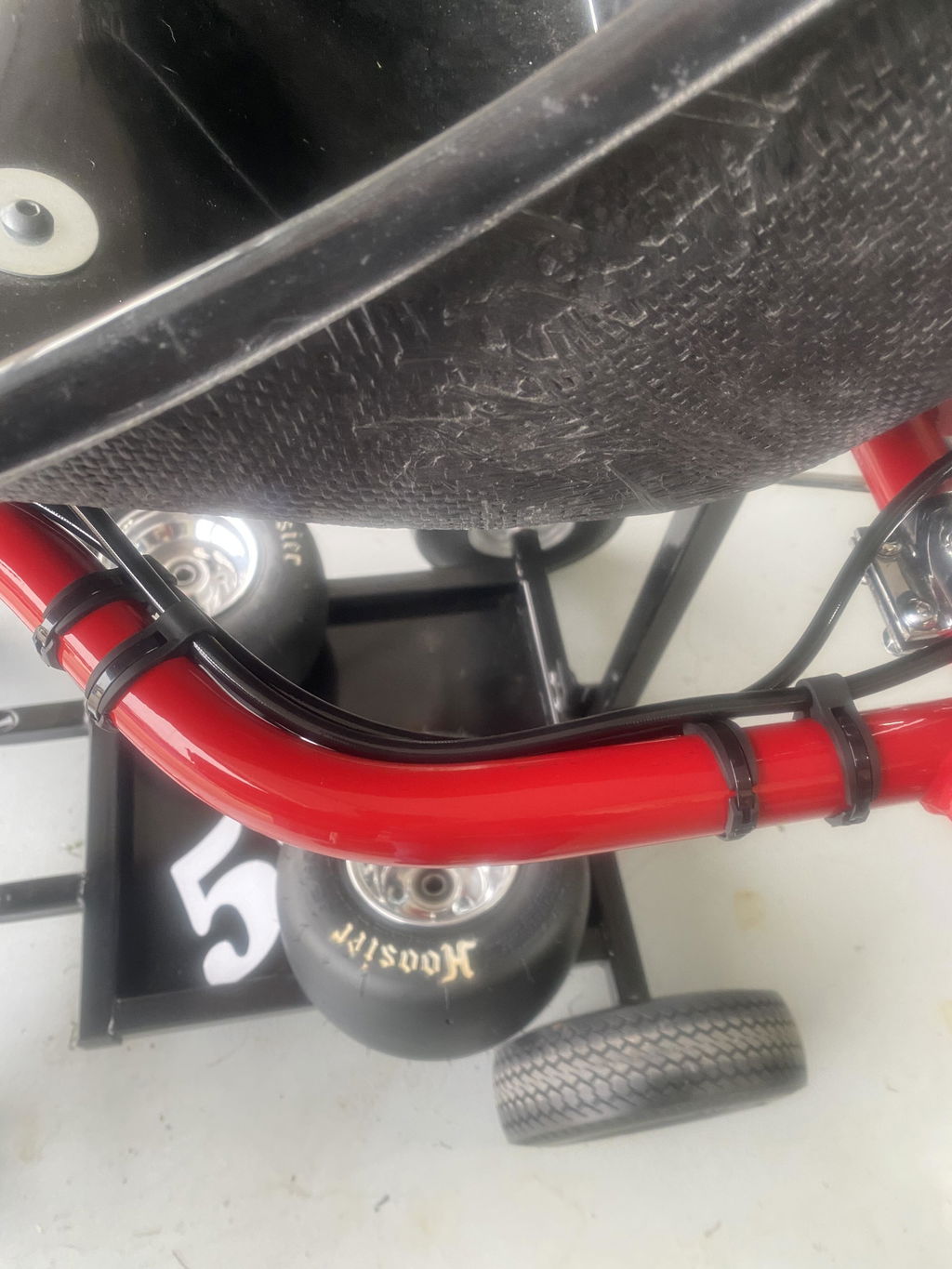

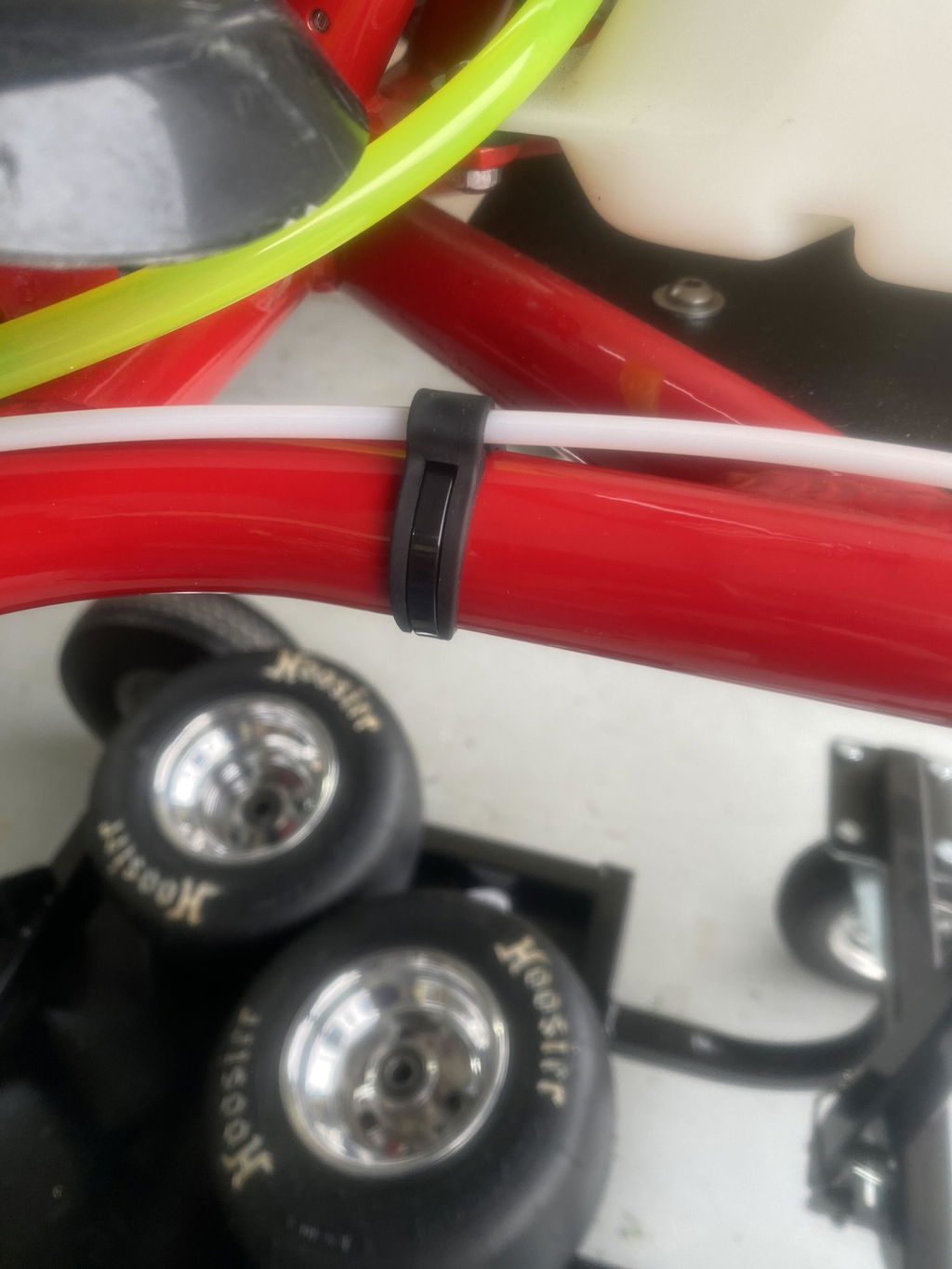

Very clean, solid clamps. Used them on the brake lines and throttle cable housing on my go kart. They work great! Wish they had one in 3/8” for the fuel line.
